Checking RocksDB 4.x thru 8.x for performance regressions on a small server: IO-bound with O_DIRECT

This post has results for performance regressions in all versions of 6.x, 7.x and 8.x using a small server. The workload is IO-bound and RocksDB uses O_DIRECT. Unlike the previous two posts I skip RocksDB 4.x and 5.x here because I am not sure they had good support for O_DIRECT.  In a previous post I shared results for RocksDB 7.x and 8.x on a larger server. A post for a cached workload is here and for IO-bound with buffered IO is here.

The workload here is IO-bound and has low concurrency. When performance changes one reason is changes to CPU overheads, but that isn't the only reason.

Update - this blog post has been withdrawn. Some of the results are bogus because the block cache was too large and the iodir (IO-bound, O_DIRECT) setup was hurt by swap in some cases.

I will remove this post when the new results are ready.

Warning! Warning! Some of the results below are bogus.

From RocksDB 6.0 to 8.8

• QPS for fillseq in 8.x is ~1/3 of what it was in early 6.x. There was a small drop from 6.13 to 6.21 and a big drop from 6.21 to 6.22. This problem doesn't reproduce when buffered IO is used instead of O_DIRECT. I will explain this in another post.
• Read QPS for read-only benchmarks decreased by up to 5% from RocksDB 6.x to 8.x
• Read QPS for read-write benchmarks is stable from RocksDB 6.x to 8.x
• QPS for overwriteandwait decreased by ~20% from 6.0 to 8.x. It is stable from RocksDB 7.5 through 8.x, excluding 8.6. It has been stable since RocksDB 7.8. Most of the decrease is from RocksDB 7.4 to 7.5.

Other notes

• A spreadsheet with all of the charts is here

Builds

I compiled all versions of 6.x, 7.x and 8.x using gcc. The build command line is:

make DISABLE_WARNING_AS_ERROR=1 DEBUG_LEVEL=0 static_lib db_bench

The versions tested were:

• 6.0.2, 6.1.2, 6.2.4, 6.3.6, 6.4.6, 6.5.3, 6.6.4, 6.7.3, 6.8.1, 6.9.4, 6.10.4, 6.11.7, 6.12.8, 6.13.4, 6.14.6, 6.15.5, 6.16.5, 6.17.3, 6.18.1, 6.19.4, 6.20.4, 6.21.3, 6.22.3, 6.23.3, 6.24.2, 6.25.3, 6.26.1, 6.27.3, 6.28.2, 6.29.5
• 7.0.4, 7.1.2, 7.2.2, 7.3.2, 7.4.5, 7.5.4, 7.6.0, 7.7.8, 7.8.3, 7.9.3, 7.10.2
• 8.0.0, 8.1.1, 8.2.1, 8.3.3, 8.4.4, 8.5.4, 8.6.7, 8.7.2, 8.8.0

Benchmark

The benchmark used the Beelink server explained here that has 8 cores, 16G RAM and 1TB of NVMe SSD with XFS and Ubuntu 22.04 with the 5.15.0-79-generic kernel. There is just one storage device and no RAID. The value of max_sectors_kb is 512. For RocksDB 8.7 and 8.8 I reduced the value of compaction_readahead_size from 2MB (the default) to 480KB. Everything used the LRU block cache.

I used my fork of the RocksDB benchmark scripts that are wrappers to run db_bench. These run db_bench tests in a special sequence -- load in key order, read-only, do some overwrites, read-write and then write-only. The benchmark was run using 1 client thread. How I do benchmarks for RocksDB is explained here and here.

The benchmark was repeated in three setups but in this post I only share results for iodir

• cached - database fits in the RocksDB block cache
• iobuf - IO-bound, working set doesn't fit in memory, uses buffered IO
• iodir - IO-bound, working set doesn't fit in memory, uses O_DIRECT

Results: from 6.x to 8.x

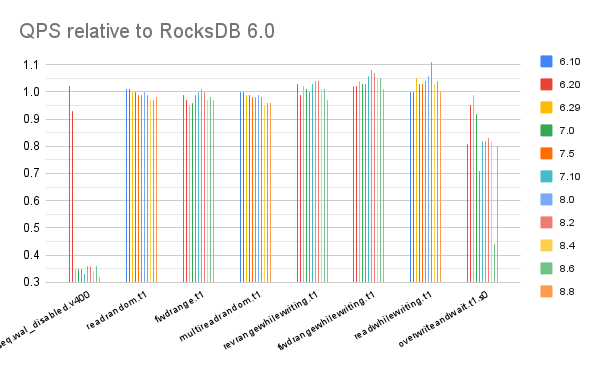

The charts use relative QPS which is: (QPS for my version / QPS for RocksDB 6.0.2)

This has results for RocksDB versions: 6.0.2, 6.10.4, 6.20.4, 6.29.5, 7.0.4, 7.5.4, 7.10.2, 8.0.0, 8.2.1, 8.4.4, 8.6.7, 8.8.0.

From RocksDB 6.0 to 8.8

• QPS for fillseq in 8.x is ~1/3 of what it was in early 6.x. There was a small drop from 6.13 to 6.21 and a big drop from 6.21 to 6.22. This problem doesn't reproduce when buffered IO is used instead of O_DIRECT.
• Read QPS for read-only benchmarks decreased by up to 5% from RocksDB 6.x to 8.x
• Read QPS for read-write benchmarks is stable from RocksDB 6.x to 8.x
• QPS for overwriteandwait decreased by ~20% from 6.0 to 8.x. It is stable from RocksDB 7.5 through 8.x, excluding 8.6. It has been stable since RocksDB 7.8. Most of the decrease is from RocksDB 7.4 to 7.5.

The following charts are limited to one benchmark per chart. I switched from a column chart to a line chart to improve readability.

The benchmark report for fillseq with RocksDB 6.x is here and I see a few big changes from 6.21.3 to 6.22.3 that help to explain why QPS drops so much, with a focus on the results for 6.21 and 6.22 (see here). But work to explain this will wait for another blog post.

• Compaction wall clock time (c_wsecs) increased by ~3X in 6.22
• Compaction CPU time (c_csecs) increased by ~1.4X in 6.22
• Stall% increased from 48.2 to 77.7
• User and system total CPU time (u_cpu, s_cpu) increased
• Process RSS increased from 0.6GB to 12.0GB

Results: 8.x

The charts use relative QPS which is: (QPS for my version / QPS for RocksDB 8.0.0)

This has results for RocksDB versions: 8.0.0, 8.1.1, 8.2.1, 8.3.3, 8.4.4, 8.5.4, 8.6.7, 8.7.2, 8.8.0

Summary

• the drop for overwriteandwait in 8.6 occurs because the db_bench client clobbers the changed default value for compaction_readahead_size

Results: 7.x

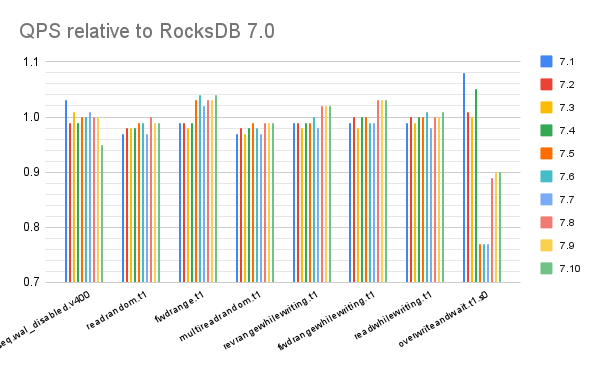

The charts use relative QPS which is: (QPS for my version / QPS for RocksDB 7.0.4)

This has results for RocksDB versions: 7.0.4, 7.1.2, 7.2.2, 7.3.2, 7.4.5, 7.5.4, 7.6.0, 7.7.8, 7.8.3, 7.9.3, 7.10.2

Summary

• QPS for overwriteandwait drops a lot from RocksDB 7.4 to 7.5 then recovers a bit in 7.8

Results: 6.x

The charts use relative QPS which is: (QPS for my version / QPS for RocksDB 6.0.2)

This has results for RocksDB versions: 6.0.2, 6.1.2, 6.2.4, 6.3.6, 6.4.6, 6.5.3, 6.6.4, 6.7.3, 6.8.1, 6.9.4, 6.10.4, 6.11.7, 6.12.8, 6.13.4, 6.14.6, 6.15.5, 6.16.5, 6.17.3, 6.18.1, 6.19.4, 6.20.4, 6.21.3, 6.22.3, 6.23.3, 6.24.2, 6.25.3, 6.26.1, 6.27.3, 6.28.2, 6.29.5

Summary

• For fillseq QPS there was a small drop from 6.13 to 6.21 and a big drop from 6.21 to 6.22
